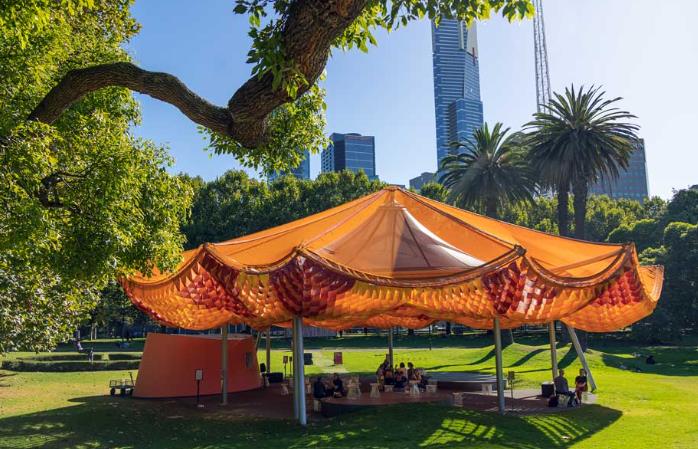

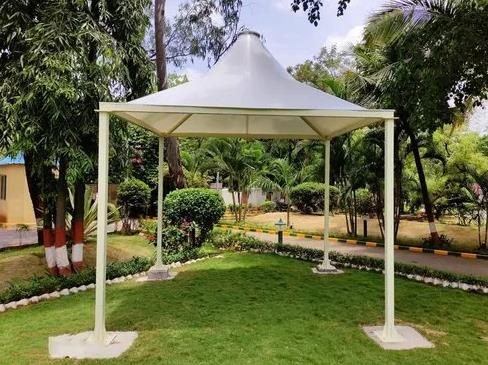

Tensile structure pavilions are redefining modern outdoor spaces by merging engineering innovation with artistic design. These lightweight, durable shelters use tensioned membranes and steel frameworks to create striking yet functional garden features. In this guide, we'll explore every stage of designing a tensile pavilion, from concept to installation, while emphasizing sustainability and practicality.
Clarify the pavilion's primary purpose to guide structural and material choices:
- Weather Protection: Opt for PTFE or PVC membranes with UV resistance for sun-heavy climates.
- Event Hosting: Include wider spans (8–12m) and reinforced footings for group gatherings.
- Aesthetic Harmony: Match the pavilion's geometry to your garden's style—curved forms for organic layouts, angular designs for modern spaces.
Conduct a thorough evaluation of your garden:
- Solar Path: Use tools like SunCalc to position the pavilion for optimal shade during peak hours.
- Wind Patterns: Install tension cables perpendicular to prevailing winds for stability.
- Soil Testing: Ensure load-bearing capacity (≥1,500 PSI) for concrete footings.
| Material | Lifespan | Light Transmission | Cost (per m²) |
|---|---|---|---|
| PTFE | 25–30 yrs | 13% | $380–$460 |
| PVC | 15–20 yrs | 5–15% | $160–$280 |
| ETFE | 20–25 yrs | 90–95% | $300–$400 |
Pro Tip: ETFE's transparency creates natural lighting effects but requires more frequent cleaning.
- Steel Frames: Hot-dip galvanized steel (150–200μm coating) prevents rust in humid climates.
- Cable Systems: 316-grade stainless steel cables withstand tension loads up to 12 kN.
Start with parametric modeling software like Rhino/Grasshopper to simulate shapes. Watch this for beginners:
Key Principles:
- Maintain a minimum 15° roof slope for water drainage.
- Limit unsupported spans to 10m without intermediate columns.
Collaborate with structural engineers to calculate:
- Wind Loads: ASCE 7-22 standards recommend 90 mph as baseline for most regions.
- Snow Loads: 30 PSF minimum in snowy climates.
- Foundation Design: Concrete piers (24" diameter × 48" depth) for stability.
- Prefabrication: Laser-cut steel components ensure ±2mm precision.
- Membrane Tensioning: Gradually apply 10–15% pre-stress to avoid material fatigue.
- Materials: Double-layered PTFE with 12mm air gap for thermal insulation.
- Performance: Reduces ambient temperature by 8°C through passive cooling.
- Innovation: PVDF-coated membrane with integrated solar panels (18% efficiency).
- Sustainability: Generates 35 kWh daily to power garden lighting.
- Cleaning: Bi-annual wash with pH-neutral cleaners (e.g., Simple Green).
- Inspection Checklist:
- Check cable tension every 6 months (target: 10–12 kN).
- Inspect membrane seams for wear annually.
- Energy Savings: Reflective membranes reduce cooling costs by 20–30%.
- Recyclability: 95% of ETFE and 70% of PTFE can be repurposed post-use.
| Component | Cost Range | Notes |
|---|---|---|
| Membrane | $160–$460/m² | ETFE at premium tier |
| Steel Framework | $120–$200/m² | Galvanized vs. stainless steel |
| Installation | $80–$150/m² | Varies by site accessibility |
| Permits | $500–$2,000 | Depends on local regulations |
Designing a tensile structure pavilion requires balancing aesthetics, engineering, and environmental factors. By selecting durable materials like PTFE membranes and galvanized steel, and leveraging parametric modeling tools, homeowners can create resilient outdoor spaces that harmonize with nature. Regular maintenance and smart material choices ensure these pavilions remain functional and visually stunning for decades.
Properly engineered designs handle 30–50 PSF snow loads and 90+ mph winds.
While DIY kits exist (10m²—consult local building codes.
Yes, but specify steep roof slopes (≥25°) and PTFE membranes for snow shedding.
Use manufacturer-provided repair kits with adhesive patches for tears <5cm.
