The hypar pavilion structure diagram stands at the crossroads of mathematics, architecture, and structural engineering. The term "hypar" is short for hyperbolic paraboloid, a doubly curved surface that has inspired generations of designers and engineers. Its unique geometry offers not only visual drama but also exceptional structural efficiency, making it a favorite for pavilions, canopies, and expressive architectural forms. This comprehensive article explores the geometry behind a hypar pavilion structure diagram, delving into its mathematical foundations, construction logic, practical applications, and the spatial experiences it enables. We will also discuss advanced design techniques, computational methods, and real-world case studies, providing a thorough understanding of this fascinating architectural phenomenon.
A hypar pavilion is a structure whose primary roof or shell is formed from a hyperbolic paraboloid surface. This surface, often described as "saddle-shaped," curves upward in one direction and downward in the perpendicular direction. The result is a dynamic, visually striking, and highly efficient architectural form.
- Doubly Curved Surface: The hypar has negative Gaussian curvature, meaning it curves in opposite directions along its two principal axes.
- Ruled Surface: The surface can be generated entirely by straight lines, allowing economical construction using straight beams or elements.
- Structural Efficiency: The geometry enables the covering of large spans with minimal material and without intermediate supports.
- Visual Dynamism: The interplay of curves and straight lines creates dramatic spatial and lighting effects.
One of the most remarkable aspects of the hyperbolic paraboloid is that it is a doubly ruled surface. This means that every point on the surface lies on two straight lines that are entirely contained within the surface. This property allows the surface to be constructed using only straight beams or elements, even though the overall shape is doubly curved.
To construct a hypar, one typically:
1. Defines four non-coplanar points in space, forming the corners of a quadrilateral.
2. Connects these points with straight beams to form the boundary.
3. Spans straight beams or lines between opposite edges, creating the saddle-shaped surface.
This approach is both structurally efficient and visually elegant, as it allows for complex forms to be built from simple, straight components.
The shape of a hypar can be manipulated by adjusting the positions of its four corner points. By raising or lowering one or more corners, designers can create a variety of forms, from shallow canopies to dramatic, sweeping shells. This flexibility makes the hypar an ideal solution for a wide range of architectural and engineering challenges.
A hypar pavilion structure diagram is a visual representation of the key structural and geometric elements that define a hypar pavilion. These diagrams are essential tools for architects, engineers, and builders, as they guide the design, fabrication, and assembly processes.
- Boundary Edges: Four non-coplanar points define the perimeter of the hypar surface.
- Straight Beams: These connect the boundary points and span between opposite edges, forming the ruled surface.
- Support Columns: Located at the corners or along the edges, these transfer loads to the foundation.
- Surface Panels or Mesh: Lightweight panels or membranes are attached to the beam grid to form the pavilion's roof or shell.
1. Define Corner Points: Establish four non-coplanar points in space to form the corners of the hypar.
2. Lay Out Boundary Beams: Connect the corner points with straight beams to create the perimeter.
3. Install Ruled Beams: Place straight beams between opposite edges, following the ruled surface logic.
4. Attach Surface Panels: Secure panels or membranes to the beam grid, forming the continuous surface.
5. Erect Support Columns: Install columns or walls at the corners or along the edges to support the structure.
The hypar's geometry allows it to distribute loads efficiently. The saddle shape provides natural stiffness, enabling the structure to span large areas without intermediate supports. This makes hypar pavilions ideal for open spaces, public gathering areas, and exhibition halls.
A celebrated example of a hypar pavilion is the Laurie M. Tisch Illumination Lawn at Lincoln Center in New York City.
- Design: Diller Scofidio + Renfro with FXFowle
- Structure: Steel beams arranged in a hypar configuration
- Roof: A slanted green lawn, appearing as a single continuous curved plane
- Construction: Straight steel members, field-bolted to columns, with a lightweight soil system above
The structure's diagram reveals a grid of straight steel beams forming the hypar surface. The beams are arranged in a fan-like pattern, creating the saddle shape. Tapered edge beams give the appearance of a floating roof, while web openings accommodate drainage and mechanical systems.
- Steel Beams: W12 and W24 sections, A992 Grade 50, 27–32 feet long
- Bolted Connections: High-strength A325 and A490 bolts
- Soil Confinement System: Honeycomb web stabilizes the green roof until plant roots are established
The hypar geometry allows the pavilion to span the plaza without intermediate supports. Loads are distributed through the steel beams and columns to the existing podium structure, demonstrating the structural and geometric advantages of the hypar form.
The ruled surface property of the hypar pavilion structure diagram enables the use of straight beams and panels, reducing fabrication complexity and costs. This efficiency is particularly valuable in large-span structures, where minimizing material usage is critical.
The saddle-shaped geometry allows hypar pavilions to cover wide areas without intermediary supports. This makes them ideal for open-air pavilions, exhibition spaces, and public gathering areas.
The doubly curved surface provides natural stiffness and resistance to deformation. The hypar's geometry distributes loads efficiently, reducing the need for heavy supports and allowing for slender, elegant structures.
The dynamic, flowing surface of a hypar pavilion creates striking visual effects and unique spatial experiences. The interplay of curves and straight lines, combined with the changing patterns of light and shadow, makes hypar pavilions visually captivating.
The principles of the hypar pavilion structure diagram can be extended to create more complex forms, known as poly-hypar surfaces. These are combinations of multiple hypar patches, joined together to form freeform shells and expressive architectural compositions.
1. Boundary Input: Define the overall shape and constraints of the structure.
2. Surface Skeletonization: Generate a base mesh conforming to the desired boundaries.
3. Skeleton Subdivision: Refine the mesh for smoothness and structural optimization.
4. Mesh Generation: Create the final surface mesh for construction.
Modern computational tools enable designers to explore a wide range of hypar and poly-hypar forms. Parametric modeling software allows for the rapid generation and evaluation of different configurations, optimizing for structural performance, material efficiency, and aesthetic qualities.
Poly-hypar surfaces have been used in a variety of architectural projects, from large-scale roofs to intricate façade systems. Their flexibility and efficiency make them suitable for both permanent and temporary structures.
- Steel: Preferred for its strength, ease of fabrication, and ability to form slender, elegant structures.
- Concrete: Used for thin-shell hypar roofs, offering durability and fire resistance but requiring more complex formwork.
- Lightweight Plastics/Composites: Ideal for temporary or transportable pavilions, enabling rapid assembly and disassembly.
- Timber: Increasingly used for sustainable pavilion structures, leveraging the ruled surface property for efficient construction.
- Prefabrication: Beams and panels are fabricated offsite and assembled rapidly onsite, minimizing disruption and improving quality control.
- Bolted Connections: Allow for efficient assembly and future disassembly or modification.
- Modular Construction: Enables scalability and adaptability to various site conditions.
While the ruled surface property simplifies fabrication, careful attention must be paid to the accuracy of the corner points and the alignment of the beams. Tolerances must be tightly controlled to ensure the desired geometry is achieved. Advanced surveying and digital fabrication techniques are often employed to meet these requirements.

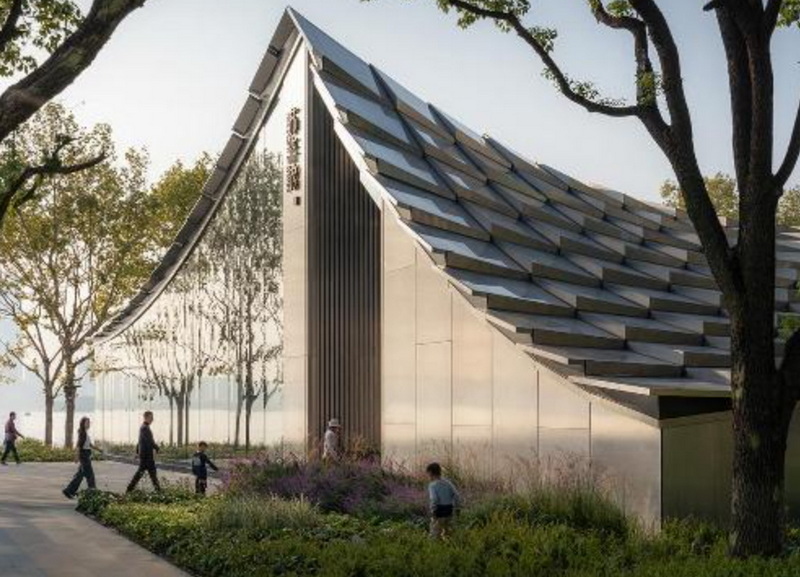

Parametric design tools, such as Grasshopper for Rhino, allow architects and engineers to define the geometry of a hypar pavilion structure diagram using adjustable parameters. This enables rapid exploration of different forms and optimization for structural performance, daylighting, and material usage.
Finite element analysis (FEA) software is used to evaluate the structural behavior of hypar pavilions, assessing factors such as load distribution, deflection, and stability. This ensures that the final design meets safety and performance requirements.
Advances in digital fabrication, including CNC cutting and robotic assembly, have made it easier to construct complex hypar and poly-hypar structures. These technologies allow for precise fabrication of beams, panels, and connectors, ensuring that the final structure matches the digital model.
Visitors to a hypar pavilion experience a rich variety of spatial effects:
- Changing Perspectives: The surface's curvature creates varying spatial volumes and sightlines, offering new views from different vantage points.
- Framed Views: Openings and cutouts in the geometry can frame specific vistas, enhancing the architectural narrative.
- Light and Shadow: The undulating surface produces dynamic patterns of light and shadow throughout the day, creating a constantly changing environment.
The curved surface of a hypar pavilion can also influence acoustics, reflecting and diffusing sound in unique ways. This can be advantageous in performance spaces, where sound quality is critical.
Hypar pavilions can be designed to optimize environmental performance. The shape can facilitate natural ventilation, channel rainwater, and provide shading, contributing to the sustainability of the structure.
The use of hyperbolic paraboloid surfaces in architecture dates back to the mid-20th century. Pioneering architects such as Félix Candela and Eduardo Torroja used thin-shell concrete hypar roofs to create expressive, efficient structures in Mexico and Spain.
Today, advances in materials, computational design, and digital fabrication have expanded the possibilities for hypar pavilions. Contemporary architects use the hypar pavilion structure diagram as a starting point for innovative, sustainable, and context-responsive designs.
Hypar pavilions are popular in parks, plazas, and gardens, where their open, airy forms provide shelter while maintaining a strong connection to the outdoors.
The large spans and flexible layouts enabled by hypar geometry make these structures ideal for exhibitions, fairs, and temporary installations.
Schools, sports facilities, and community centers benefit from the efficient, visually engaging spaces created by hypar pavilions.
Hypar forms are also used in transportation infrastructure, such as airport terminals, bus stations, and pedestrian bridges, where large, column-free spaces are needed.
The ability to construct hypar surfaces from straight, lightweight elements reduces material usage and waste, contributing to more sustainable construction practices.
The geometry of hypar pavilions can be leveraged to enhance passive environmental control. The curved surface can be oriented to provide optimal shading, channel prevailing breezes for natural ventilation, and direct rainwater for collection or irrigation.
The use of renewable materials, such as sustainably sourced timber or recycled composites, further enhances the environmental performance of hypar pavilion structures.
Hypar pavilions offer unique educational opportunities, illustrating the intersection of geometry, engineering, and design. They serve as inspiring case studies for students and professionals alike, demonstrating how mathematical principles can be translated into functional, beautiful architecture.
Community engagement is often a key aspect of hypar pavilion projects. The open, inviting forms encourage public interaction and foster a sense of place, making them valuable additions to urban and rural environments alike.
The geometry behind a hypar pavilion structure diagram is a testament to the power of mathematical surfaces in architecture and engineering. By leveraging the unique properties of the hyperbolic paraboloid-a doubly curved, ruled surface-designers can create structures that are both materially efficient and visually stunning. The hypar pavilion's ability to span large areas with minimal supports, its adaptability to various materials and construction methods, and its dramatic spatial and environmental effects make it a favorite for public spaces, pavilions, and innovative architectural projects worldwide.
As computational design and digital fabrication technologies continue to advance, the potential for hypar and poly-hypar structures will only grow. These forms will remain at the forefront of architectural innovation, inspiring new generations to explore the rich possibilities of geometry in the built environment.
The main advantage is the ability to construct a complex, doubly curved surface using only straight beams or elements, resulting in material efficiency, structural strength, and aesthetic appeal.
The geometry is defined by four non-coplanar points forming the corners of a quadrilateral, with straight beams or lines spanning between them to create the saddle-shaped surface.
Yes, hypar pavilion structures can be built from concrete, lightweight plastics, composites, timber, or even fabric membranes, depending on the design requirements and intended use.
Poly-hypar surfaces are complex shells formed by combining multiple hypar patches, allowing for freeform architectural designs while retaining the ruled surface property for efficient construction.
Their saddle shape provides natural stiffness and distributes loads effectively, enabling large spans without intermediate supports and reducing the amount of material needed.
