Views: 222 Author: Ann Publish Time: 2025-05-07 Origin: Site
Content Menu
● Planning Your Covered Patio Structure
● Selecting Materials for the Covered Patio Structure

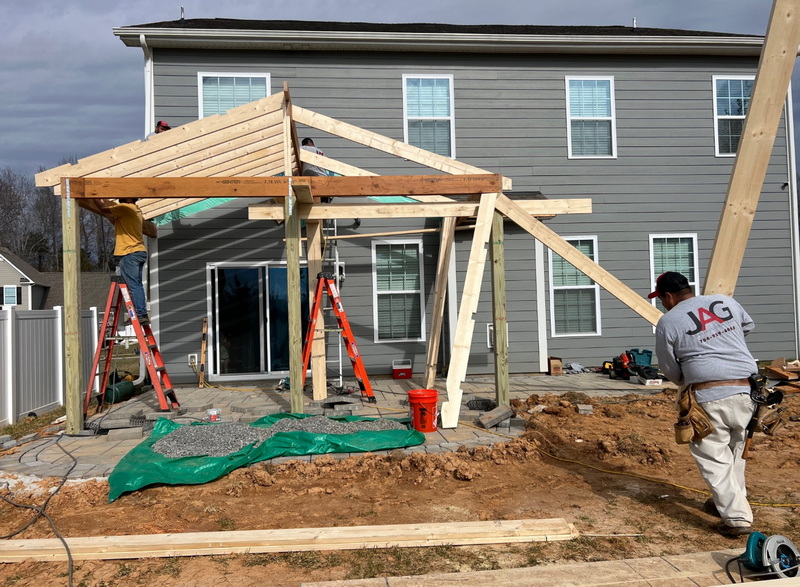

● Step-by-Step Guide to Attaching a Covered Patio Structure to an Existing House
>> 1. Prepare the Site and Foundation
>> 2. Install Vertical Supports
>> 3. Attach the Ledger Board to the House
● Additional Tips for a Successful Covered Patio Structure
● FAQ
>> 1. How do I ensure my covered patio is securely attached to my house?
>> 2. What materials are best for a covered patio structure?
>> 3. How do I handle rainwater runoff from the patio roof?
>> 4. Can I attach a covered patio to any type of house exterior?
>> 5. Do I need a permit to build a covered patio attached to my house?
Creating a covered patio attached to your existing house is a fantastic way to extend your living space outdoors, providing shade, shelter, and a comfortable area to relax or entertain. This comprehensive guide will walk you through the process of attaching a covered patio structure to an existing house, covering planning, materials, construction steps, and essential tips for a secure and durable installation.
Before you begin construction, careful planning is crucial to ensure your covered patio integrates seamlessly with your home and meets your needs.
- Design and Size: Determine the size and style of the covered patio. Consider how it will complement your home's architecture and the intended use of the space. For example, a larger patio with an extended roof may accommodate an outdoor dining area and seating, while a smaller structure might serve as a cozy nook for morning coffee.
- Local Building Codes: Check local regulations and obtain necessary permits. Some areas have restrictions on patio covers regarding height, materials, and setbacks. It's essential to ensure your covered patio structure complies with these rules to avoid fines or forced removal.
- Foundation: Decide on the foundation type. A concrete slab is common for covered patios, providing a strong base for vertical supports. Alternatively, you might consider a paver base or compacted gravel if you prefer a more permeable surface, but these may require additional footings for structural posts.
- Roof Attachment Method: Identify how the patio roof will connect to your house, which affects structural integrity and water drainage. The most common method is using a ledger board fastened securely to the house framing, but other methods include free-standing structures or using riser brackets where direct ledger attachment isn't feasible.
Choosing the right materials affects both aesthetics and durability.

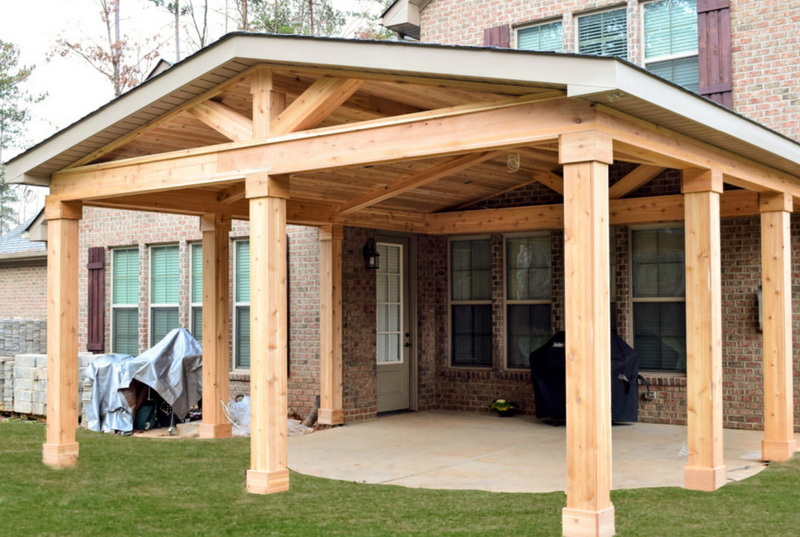

- Wood: Popular for its natural look and ease of customization. Cedar is highly recommended due to its resistance to pests and decay. Pressure-treated pine is a more affordable option but requires regular maintenance. When using wood, consider sealing or staining to prolong life.
- Aluminum: Lightweight, sturdy, and low maintenance. Aluminum patio covers are common and can be attached efficiently to house walls. They resist rust and require minimal upkeep, making them ideal for humid or coastal environments.
- Steel: Offers exceptional strength and weather resistance, ideal for harsh climates but requires a solid foundation and professional installation to ensure safety. Steel frames can be powder-coated for corrosion resistance and aesthetic appeal.
- Concrete: Often used for the patio floor, concrete is durable and low maintenance. You can add stamped or stained finishes to enhance its look. Concrete footings are also essential for anchoring vertical supports.
- Roofing Materials: The roof covering can be made from various materials such as asphalt shingles to match your home's roof, metal panels for durability, polycarbonate sheets for light transmission, or clay tiles for a Mediterranean look.
- Excavation: Begin by marking the patio perimeter and digging footings for vertical posts. Footings should be below the frost line (typically 12 to 24 inches deep) to prevent shifting.
- Reinforcement: Place #3 rebar horizontally and vertically within the footing holes to reinforce the concrete.
- Concrete Pour: Pour concrete into the footings and allow it to cure fully (usually 48 to 72 hours) before proceeding.
- Post Selection: Use 4x4 or 6x6 pressure-treated wood posts or metal columns depending on your design and load requirements.
- Anchoring: Secure posts into the concrete footings using post anchors or brackets to prevent movement and rot.
- Alignment: Use a level and string line to ensure posts are perfectly vertical and aligned with the patio layout.
- Locate Studs: Use a stud finder to locate the wall studs behind the siding where the ledger will be attached.
- Remove Siding: Carefully remove siding or trim where the ledger board will be installed to expose the sheathing.
- Install Flashing: Apply metal flashing above the ledger board to prevent water infiltration behind the ledger.
- Fastening: Secure the ledger board to the house framing using lag bolts or structural screws spaced every 16 inches. Ensure the ledger is level and firmly attached.
- Sealant: Apply a high-quality exterior sealant between the ledger board and the house to create a waterproof barrier.
- Headers and Beams: Attach horizontal headers to the tops of the vertical posts to support the rafters.
- Rafters: Cut rafters to length and attach them at an angle to create the roof slope. Use joist hangers or hurricane ties for secure connections.
- Slope Considerations: Ensure the roof has a minimum slope of 1/4 inch per foot away from the house to facilitate water drainage.
- Bracing: Add diagonal bracing between posts and beams to increase stability and resist wind loads.
- Underlayment: Install roofing felt or synthetic underlayment over the rafters to provide waterproofing.
- Roof Covering: Depending on your choice, install shingles, metal panels, polycarbonate sheets, or tiles. For polycarbonate or translucent panels, use appropriate fasteners with rubber washers to prevent leaks.
- Sealing: Seal all joints and edges with roofing sealant or caulking to prevent water intrusion.
- Gutters and Drainage: Install gutters along the patio roof edge to channel rainwater away from the house foundation. Downspouts should direct water to safe drainage areas.
- Trim and Paint: Add fascia boards and trim to cover exposed edges and protect wood from weather. Paint or stain all wood components to enhance durability and appearance.
- Electrical and Lighting: If desired, install outdoor-rated electrical wiring for lighting, ceiling fans, or heaters. This step may require a licensed electrician.
- Furniture and Decor: Furnish your covered patio with weather-resistant furniture, rugs, and accessories to create a welcoming outdoor living space.
- Waterproofing is Key: Proper flashing and sealing around the ledger board are essential to prevent water damage to your house's exterior wall.
- Consider Insulation: If you plan to use the patio year-round, consider adding insulation or a ceiling to reduce heat loss or gain.
- Ventilation: Good airflow beneath the patio roof helps prevent moisture buildup and prolongs the life of roofing materials.
- Professional Help: If you are unsure about structural calculations or local building codes, consult a structural engineer or professional contractor.
- Maintenance: Regularly inspect your covered patio structure for signs of wear, such as loose fasteners, wood rot, or rust, and perform maintenance as needed.
Attaching a covered patio structure to an existing house enhances your outdoor living space, providing shelter and style. The key to a successful project lies in thorough planning, selecting appropriate materials, ensuring a strong foundation, and properly securing the patio roof to your home. By following the outlined steps and considering local building codes, you can create a durable and attractive covered patio that adds value and enjoyment to your property for years to come. Remember, attention to detail in flashing, drainage, and structural connections will ensure your covered patio remains safe and weather-resistant.
Attach a ledger board directly to the house framing with lag bolts, use flashing to prevent water damage, and reinforce connections with joist hangers and metal brackets. Always fasten into structural studs, not just siding.
Wood (especially cedar), aluminum, and steel are popular for their durability and aesthetics. Concrete is preferred for the patio floor. Choose roofing materials compatible with your climate and home style.
Design the roof with a slope away from the house, install gutters and downspouts, and use metal flashing above the ledger board to channel water properly and avoid leaks.
Most house exteriors can accommodate a ledger board attachment, but ensure you fasten into structural framing, not just siding. For brick or stone exteriors, special anchors and fasteners may be required. Consult a professional if unsure.
Yes, most local jurisdictions require permits. Check with your local building department for regulations, required inspections, and any restrictions on size or materials.
