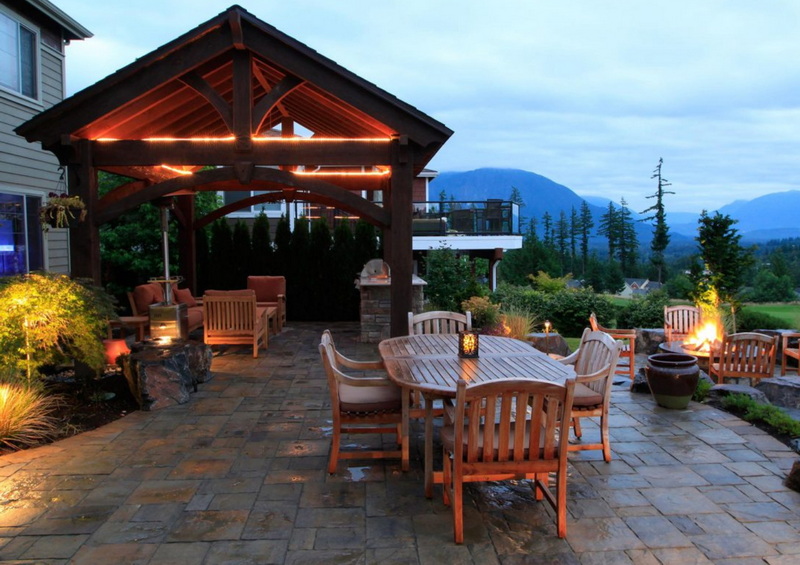

Transforming your outdoor pavilion into a functional, inviting space often hinges on one key upgrade: electricity. Whether you want to illuminate evening gatherings, power a ceiling fan, or install outlets for entertainment and cooking, adding electricity to your outdoor pavilion is both possible and highly rewarding. This comprehensive guide will walk you through the process, considerations, and best practices for safely and effectively installing electricity in an outdoor pavilion.
An outdoor pavilion is more than just a shelter—it's a destination for relaxation, entertainment, and family gatherings. But to fully realize its potential, electricity is often essential. From basic lighting to sophisticated sound systems, electricity brings comfort, convenience, and safety to your outdoor living space. The process of installing electricity in an outdoor pavilion is a blend of planning, technical skill, and creativity, ensuring your space is both beautiful and highly functional.
- Extended Usability: Enjoy your pavilion after dark with proper lighting, making it perfect for dinners, parties, or quiet evenings.
- Comfort: Power ceiling fans or heaters to maintain a pleasant environment year-round, regardless of the weather.
- Entertainment: Plug in speakers, TVs, or projectors for gatherings and movie nights, transforming your pavilion into an entertainment hub.
- Convenience: Use outlets for cooking appliances, charging devices, or powering tools, making your outdoor pavilion as functional as your indoor spaces.
- Safety: Well-lit spaces deter intruders and reduce tripping hazards at night, ensuring your family and guests are protected.
Determine what you want to power: lights, fans, outlets, sound systems, or appliances. Make a detailed list and estimate the total electrical load. Consider both current and potential future needs to avoid costly upgrades down the line.
Before any work begins, check your local building codes. Many areas require permits for outdoor electrical work and may mandate that a licensed electrician perform the installation. This step is crucial for ensuring your installation is safe and legal.
Plan where each fixture, outlet, and switch will go. Consider the pavilion's structure, how you'll use the space, and how to conceal wiring for aesthetics and safety. Sketch a layout and mark all locations, taking into account the best paths for running wiring unobtrusively.
- Extend an Existing Circuit: Suitable for low-power needs such as a few lights or outlets.
- Install a Dedicated Circuit/Subpanel: Necessary for high-power requirements, such as multiple appliances or future expansion. A subpanel in the pavilion offers flexibility for adding circuits later.
- Turn Off Power: Always shut off the main breaker before starting any electrical work to avoid accidental shock.
- Use Outdoor-Rated Materials: Wires, boxes, and fixtures must be rated for outdoor use (e.g., UF or THWN wire) to withstand moisture and temperature changes.
- GFCI Protection: All outdoor outlets should be ground-fault circuit interrupter (GFCI) protected to prevent electrical shock.
- Weatherproofing: Use weatherproof boxes and covers; seal all exterior penetrations with caulk to keep water out.
- Proper Burial Depth: Underground conduit must be buried at the correct depth, typically 18–24 inches, depending on local codes, to protect from accidental digging or damage.
- Separation of Circuits: Keep low-voltage (e.g., speakers, landscape lights) and high-voltage (120V) wiring separate for safety and to prevent interference.
- List all desired fixtures and outlets.
- Draw a detailed layout and mark locations.
- Obtain necessary permits from your local building authority.
- Turn off the main breaker to ensure safety.
- Add a dedicated breaker in the main panel for the pavilion circuit.
- Use a cable clamp or conduit for wire entry, ensuring a secure and code-compliant connection.
- Dig a trench from the house to the pavilion, following code-required depth.
- Use outdoor-rated wire (UF or THWN) inside a conduit for protection.
- Pull wire from the house panel to the pavilion location, ensuring no sharp bends or kinks.
- Mount weatherproof boxes for switches, outlets, and fixtures at all planned locations.
- Secure conduit along the pavilion frame and underground, using appropriate fasteners and supports.
- Strip and connect wires to outlets, switches, and fixtures according to your layout.
- Use wire nuts and pigtails for secure connections.
- Install GFCI outlets and test for proper operation before closing up boxes.
- Use channels or chases in timber frames to hide wiring, maintaining the aesthetic appeal of your outdoor pavilion.
- Cover exposed wiring with matching trim or fillet strips for both aesthetics and future access.
- Caulk around all exterior boxes to prevent moisture intrusion and ensure longevity.
- Attach cover plates and fixtures securely.
- Restore power and test all circuits for proper operation.
- Schedule an inspection if required by local code to ensure compliance and safety.
Timber frame outdoor pavilions present unique wiring challenges due to exposed beams and posts. Specialized techniques ensure wiring is both functional and invisible:
- Pre-cut Channels: Channels or chases are cut into the top of roof timbers before roof decking is installed, allowing wiring to be run out of sight.
- Flush-Mounted Boxes: Ceiling boxes for lights and fans are mounted flush to the underside of timbers for a clean look.
- Removable Fillet Strips: Posts may have a two-step channel—wiring sits in a deep groove, covered by a removable strip matching the pavilion's wood. This allows for future upgrades without visible wires.
- Flexible Conduit: In areas where wood movement is expected, flexible conduit can accommodate expansion and contraction, reducing the risk of wire damage.
- Lighting: Choose weather-resistant LED fixtures, string lights, or chandeliers for ambiance and efficiency. Consider task lighting for cooking areas and accent lighting for architectural features.
- Fans: Outdoor-rated ceiling fans provide cooling and air circulation, essential for comfort during warmer months.
- Outlets: Install GFCI-protected, weatherproof outlets for safety. Place outlets strategically for grills, speakers, and charging stations.
- Smart Controls: Consider adding dimmers, timers, or smart switches for convenience, allowing you to control lighting and fans remotely or on a schedule.
- Inside Beams and Posts: Use hidden chases and removable covers to keep wiring out of sight.
- Underground: Use conduit and proper burial techniques to protect wiring from moisture, pests, and physical damage.
- Weatherproofing: All connections and boxes must be sealed against moisture. Use silicone caulk and weatherproof gaskets to ensure a tight seal.
DIY Installation:
- Suitable for those with electrical experience and confidence in following codes.
- Must follow all safety codes and obtain permits.
- Mistakes can be dangerous and costly, especially with outdoor and underground wiring.
Hiring a Professional:
- Ensures code compliance and safety.
- Required by law in many areas for certain types of work.
- Can handle complex installations, troubleshooting, and inspections.
- Provides peace of mind with warranties and guarantees.
| Challenge | Solution |
|---|---|
| Exposed wiring in open structures | Use concealed channels and matching trim |
| Moisture and weather exposure | Use weatherproof boxes, GFCI outlets, and caulk |
| Long distance from house to pavilion | Use larger gauge wire to prevent voltage drop |
| Future upgrades or changes | Install removable covers over wiring channels |
| Obtaining permits and passing inspection | Hire a licensed electrician and follow local codes |
- Regularly check outlets and fixtures for wear or moisture intrusion. Outdoor environments are harsh, so periodic inspections are crucial.
- Test GFCI outlets monthly. This ensures they are functioning properly and providing necessary protection.
- Keep wiring accessible for future upgrades by using removable covers. This makes it easier to add new features or repair existing wiring.
- Schedule periodic inspections, especially after severe weather. Heavy rain, snow, or wind can damage outdoor electrical systems.
As you design and install electricity in your outdoor pavilion, consider energy-efficient and sustainable options:
- LED Lighting: Use LED bulbs and fixtures, which consume less energy and last significantly longer than incandescent or halogen options.
- Solar Power: For remote pavilions or to reduce your carbon footprint, consider solar-powered lights or even a small solar panel system to power outlets and fans.
- Timers and Motion Sensors: Install timers or motion sensors on lights to ensure they're only on when needed, saving energy and extending bulb life.
- Smart Home Integration: Connect your pavilion's electrical system to your smart home hub for remote monitoring and control, optimizing energy use.
Modern outdoor pavilions can benefit from the integration of smart technology:
- Smart Lighting: Control brightness, color, and scheduling from your smartphone or voice assistant.
- Wi-Fi Extenders: Ensure strong internet connectivity in your pavilion for streaming, work, or smart device control.
- Outdoor Speakers: Install weatherproof, Bluetooth-enabled speakers for music and announcements.
- Security Cameras: Add outdoor-rated cameras for monitoring and peace of mind.
Smart technology not only adds convenience but also increases the value and appeal of your outdoor pavilion.
Outdoor pavilions are exposed to the elements year-round, so consider these seasonal factors:
- Winter: Protect outlets and fixtures from snow and ice. Use covers and periodically check for moisture intrusion.
- Summer: Ensure fans and cooling devices are in good working order. Inspect wiring for damage from heat or pests.
- Rainy Seasons: Double-check all weatherproofing, especially around boxes and conduits. Replace any worn gaskets or seals promptly.
- Storms: After severe weather, inspect the pavilion's electrical system for damage and address issues immediately to prevent hazards.
Installing electricity in an outdoor pavilion is not only possible—it's a transformative upgrade that enhances the functionality, comfort, and value of your outdoor living space. With thoughtful planning, adherence to safety codes, and the right materials, you can create a pavilion that's as practical as it is beautiful. Whether you choose to DIY or hire a professional, the result will be a versatile retreat you'll enjoy for years to come. Remember to prioritize safety, energy efficiency, and future flexibility as you bring power to your outdoor pavilion.
Use outdoor-rated wire such as UF (underground feeder) or THWN (thermoplastic, heat and water-resistant, nylon-coated) for underground and exposed outdoor runs. Always use conduit for added protection and longevity.
Yes, most localities require a permit and inspection for outdoor electrical work. Check with your local building department before starting the project to ensure compliance and safety.
Cut channels or chases into beams and posts, then cover them with removable strips made from matching wood. This keeps wiring hidden and accessible for future changes or repairs.
If you have electrical experience and local codes allow, you can DIY. However, hiring a licensed electrician is safer and may be required by law, especially for complex or high-power installations.
- Turn off the main breaker before starting work.
- Use GFCI outlets and weatherproof boxes.
- Seal all exterior penetrations with caulk.
- Follow all local codes and manufacturer instructions.
- Regularly inspect your installation for wear and damage.
